MX series

MX-8

音箱特点:

精致的同轴点声源设计;低频下潜及力度结合点非常好,低频饱满结实下潜深沉;人声圆润温厚;再配合通透丝滑的高频,出色的清晰度让你的语言扩音更自然优美;可以作为舞台返听用,也可以吊挂使用。

外观特点:

箱体采用经过精确计算的多边形外形设计,体积和重量都达到最优化,箱体表面使用黑色(可定制)环保水性耐磨油漆,内置8个M8钢制吊装螺丝孔装置,底部装有一个35毫米的铸铝支撑座,侧部各配置-个舒适把手,背部配置两个NL4MP插头,面罩使用高透声率的模压钢制铁网内加防水海棉网。

Inquiry
Product details

技术参数   Specifications

型号   Model

MX-8

单元组成   Drivers

LF:1×8(200mm)/1.5(38mm)voice coil


HF:1×1(25mm)/1.35(34mm)voice coil

频率响应   Frequency Response

65-20000Hz(-3dB)

覆盖角度   Dispersion(H×V)

60°×60°

灵敏度   Sensitivity(1W@1m)

95dB

声压级输出   SPL

116dB(continuous),122dB(peak)

标准阻抗   Nominal Impedance

功率   Power

185W(rated)/740W(peak)

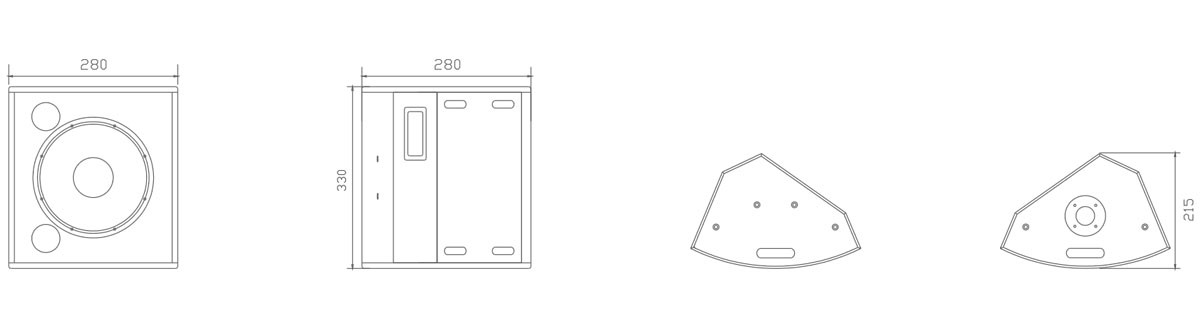

外形尺寸   (H×W×D)Dimensions(W×D×H)

330mm×288mm×215mm

净重   Net Weight

6.9kg


外形尺寸   Specifications


选配产品   Specifications
