技术参数 Specifications
型号 Model | LA-212 |
单元组成 Drivers | LF: 2×12"(300mm)/3"(75mm) voice coil |
MF: 4×6.5"(163mm)/2"(51mm) voice coil | |
HF: 2×1.4" (35mm)/2.5"(63mm) voice coil | |
频率响应 Frequency Response | 50-18000Hz(-3dB) |
覆盖角度 Dispersion(H×V) | 120°×8° |
灵敏度 Sensitivity(1W@1m) | LF:105dB/MF:107dB/HF:108dB |
声压级输出 SPL | 129dB(continuous),135dB(peak) |
标准阻抗 Nominal Impedance | LF:8Ω/MF: 8Ω/HF: 16Ω |
功率 Power | LF:1000W(rated)/4000W(peak) |
MF:680W(rated)/2720W(peak) | |
HF:160W(rated)/640W(peak) | |
外形尺寸 Dimensions(H×W×D) | 368mm×966mm×556mm |
净重Net Weight | 49kg |

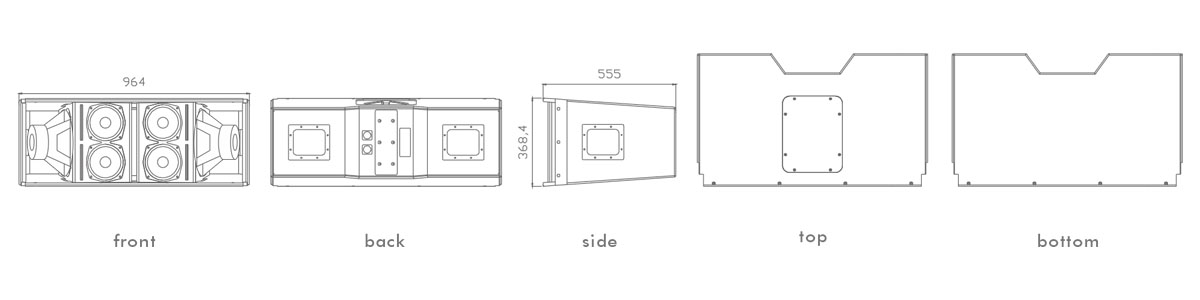

外型尺寸Outline Dimensions
选配产品Outline Dimensions
