技术参数Specifications
型号Model | AX-115P |
单元组成Drivers | LF: 1×15"(375mm)/4"(100mm) voice coil |
频率响应Frequency Response | 35-250Hz(-3dB) |
覆盖角度Dispersion(H×V) | / |
灵敏度Sensitivity(1W@1m) | 96dB |
声压级输出SPL | 124dB(continuous),130dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 500W(rated)/2000W(peak) |
1×800W(With/Without DSP) | |
外形尺寸Dimensions(H×W×D) | 455mm×455mm×620mm |
净重Net Weight | 38kg |

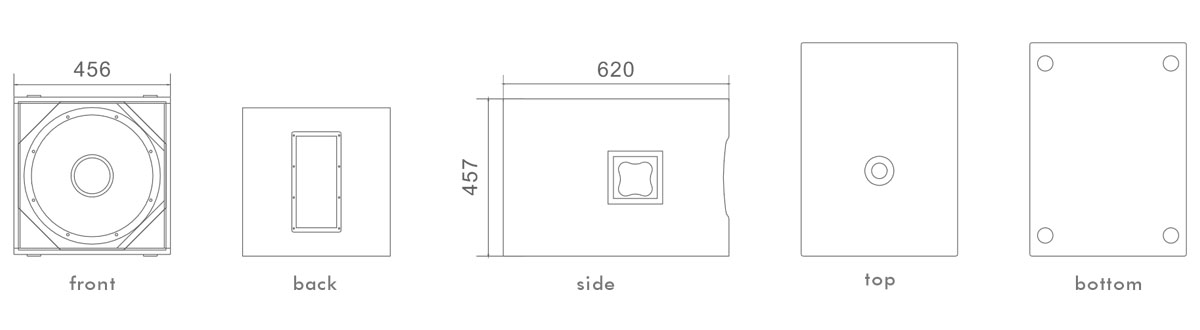

外型尺寸Outline Dimensions

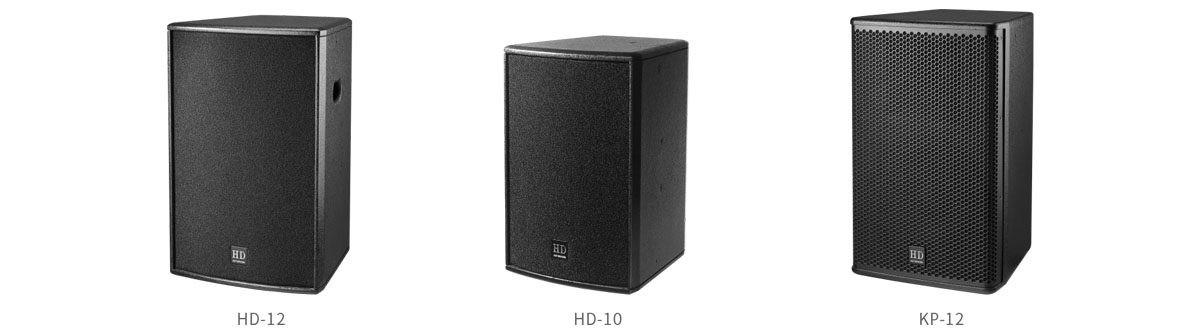

选配产品Matching Products
