AS-6 series

AS-658

音箱特点: 使用钕磁驱动单元;是一款三分频矩阵音箱,力量与速度俱佳,高音清晰细腻,中音清脆,低音有力饱满,控制力良好,是一款恒指向性的外置两路三分频中远程全频音箱。


外观特点: 箱体采用经过精确计算的梯形外形设计,体积和重量都达到最优化,箱体表面使用黑色(可定制)环保水性耐磨油漆,内置14个M10钢制吊装螺丝孔装置,底部装有一个35毫米的铸铝支撑座,背部各配置一个舒适把,背部配备两个NL4MP插头,面罩使用高透声率的模压钢制铁网内加防水海棉网。




Inquiry
Product details

技术参数Specifications


型号Model

AS-658

单元组成Drivers

LF: 1×15"(375mm)/4"(55mm) voice coil


MF: 1×8"(200mm)/5"(125mm) voice coil


HF: 1×1"(25mm)/1.75"(44mm) voice coil

频率响应Frequency Response

55-18000Hz(-3dB)

覆盖角度Dispersion(H×V)

50°×25°(可旋转)

灵敏度Sensitivity(1W@1m)

LF:105dB/MF:106dB/HF:107dB

声压级输出SPL

128dB(continuous),134dB(peak)

标准阻抗Nominal Impedance

功率Power

LF:500W(rated)/2000W(peak)


MF:250W(rated)/1000W(peak)


HF:250W(rated)/1000W(peak)

外形尺寸Dimensions(H×W×D)

923mm×538mm×502mm

净重Net Weight

48kg

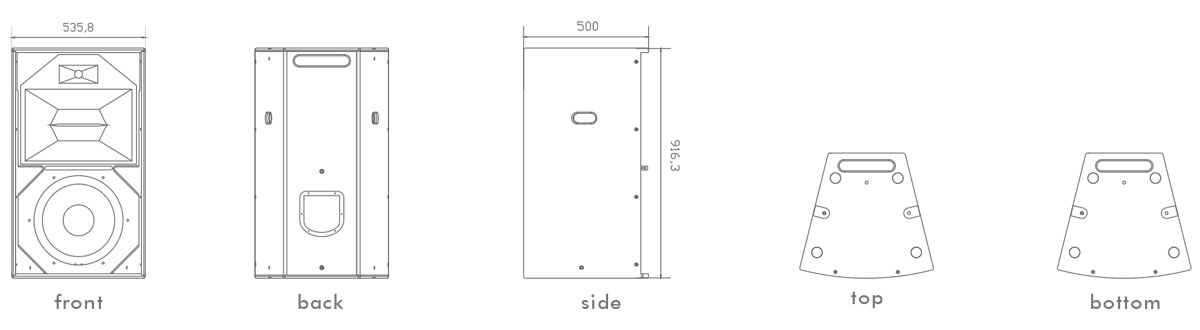

外型尺寸Outline Dimensions

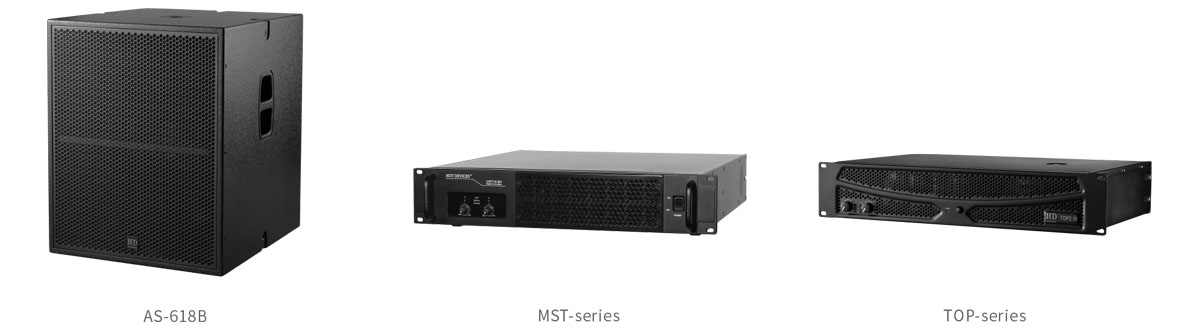

选配产品Matching Products
