HD Devices series

R2

音箱特点:

R2是一款全号角加载式音箱。包括一一个15寸低音单元, 8寸的中音单元,和一一个1寸出口的高音单元。号角加载功能及波导驱动技术结合,具有非常高的声压输出效率。R2的驱动单元独特结合,模式,效率高和声波的优点使其具有非常广泛的用途。该扬声器完美解决了质量与效率输出的问题。

外观特点:

箱体采用经过精确计算的梯形外形设计,体积和重量都达到最优化,箱体表面使用黑色(可定制)环保水性耐磨油漆,内置14个M10钢制吊装螺丝孔装置,底部装有-个35毫米的铸铝支撑座,侧部及顶部各配置一一个舒适把手,背部配备两个NL4MP插头。


Inquiry
Product details

技术参数   Specifications


型号   Model

R2

单元组成   Drivers

LF:1×15(375mm)/4(100mm)voice coil


MF:1×8(200mm)/5(125mm)voice coil


HF:1×1(25mm)/1.75”(44mm)voice coil

频率响应   Frequency Response

55-18000Hz(-3dB)

覆盖角度   Dispersion(H×V)

50°-25°(可旋转)

灵敏度   Sensitivity(1W@1m)

LF:105dB/MF:106dB/HF:107dB

声压级输出   SPL

128dB(continuous),134dB(peak)

标准阻抗   Nominal Impedance

LF:8Ω/MHF:8Ω

功率   Power

LF:500W(rated)/2000W(peak)


MHF:250W(rated)/1000W(peak)



外形尺寸   Dimensions(H×W×D)

923mm×538mm×502mm

净重   Net Weight

48kg

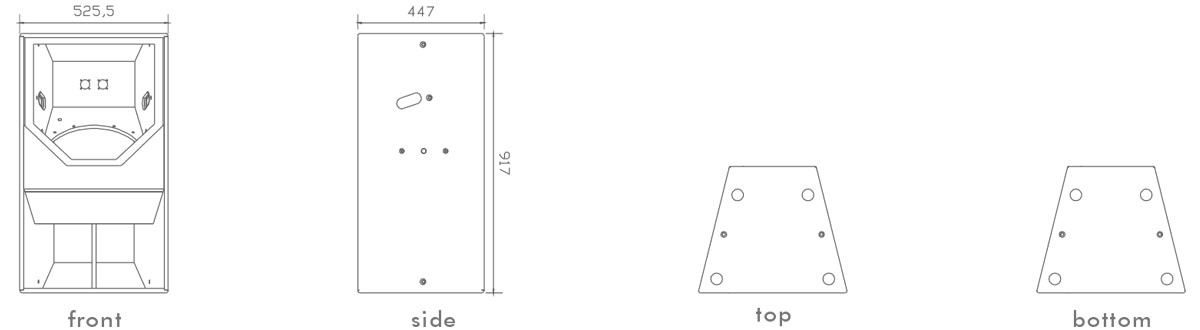

外形尺寸   Specifications

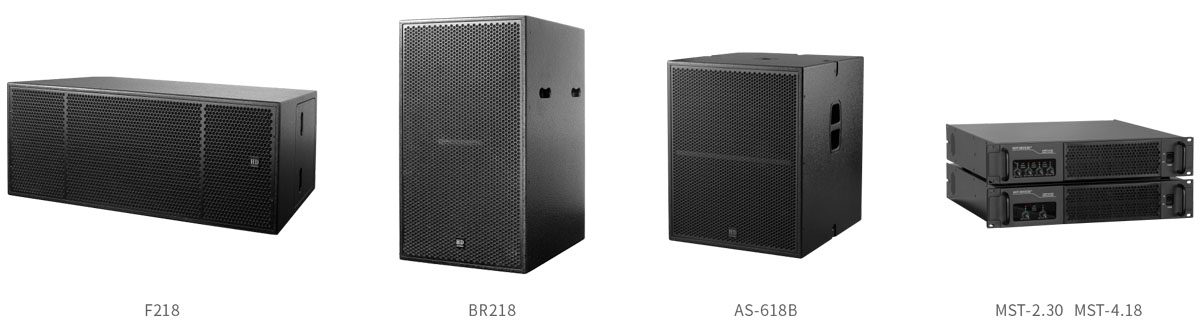

选配产品   Specifications
