技术参数Specifications
型号Model | KP-12 |
单元组成Drivers | LF: 1×12"(300mm)/3"(75mm) voice coil |
HF: 1×1"(25.5mm)/1.75"(44mm) voice coil | |
频率响应Frequency Response | 50-19000Hz(-3dB) |
覆盖角度Dispersion(H×V) | 70°×100°(可旋转) |
灵敏度Sensitivity(1W@1m) | 98dB |
声压级输出SPL | 123dB(continuous),129dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 400W(rated)/1600W(peak) |
外形尺寸Dimensions(H×W×D) | 600mm×360mm×382mm |
净重Net Weight | 18.6kg |

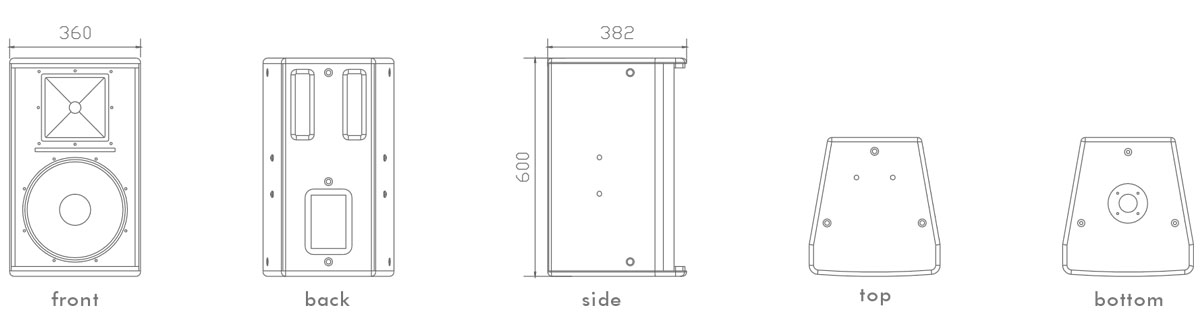

外型尺寸Outline Dimensions

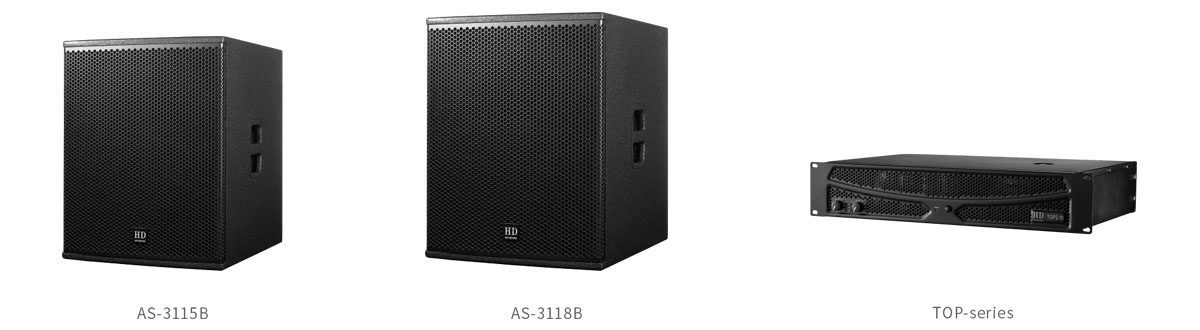

选配产品Matching Products
