技术参数Specifications
型号Model | KP-10 |
单元组成Drivers | LF: 1×10"(255mm)/2.5"(65mm) voice coil |
HF: 1×1"(25.5mm)/1.75"(44mm) voice coil | |
频率响应Frequency Response | 55-19000Hz(-3dB) |
覆盖角度Dispersion(H×V) | 70°×100°(可旋转) |
灵敏度Sensitivity(1W@1m) | 96dB |
声压级输出SPL | 118dB(continuous),124dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 250W(rated)/1000W(peak) |
外形尺寸Dimensions(H×W×D) | 520mm×328mm×338mm |
净重Net Weight | 15.8kg |

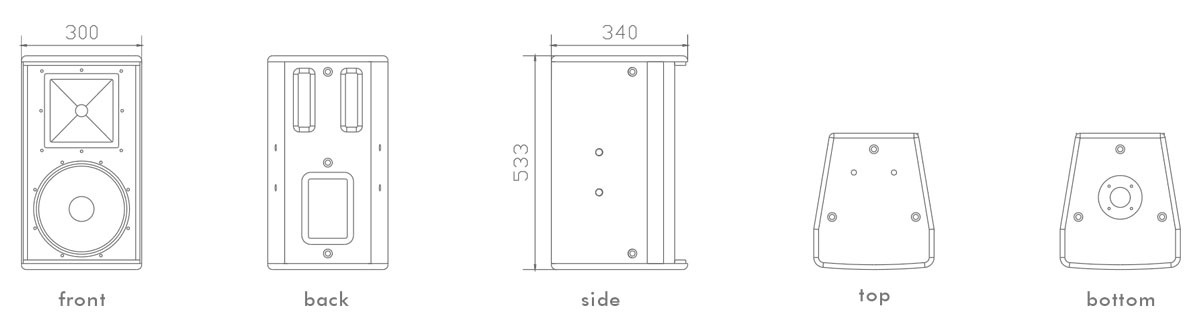

外型尺寸Outline Dimensions

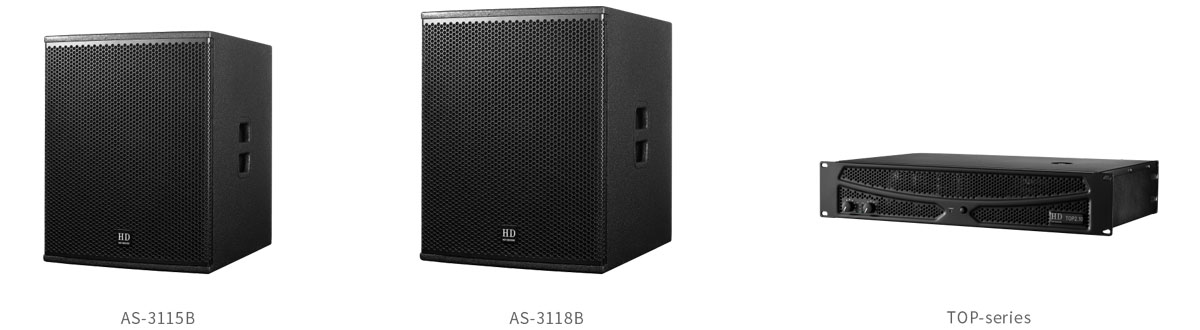

选配产品Matching Products
