技术参数Specifications
型号Model | AS-621B |
单元组成Drivers | LF: 1×21"(525mm)/4.5"(115mm) voice coil |
频率响应Frequency Response | 30-200Hz(-3dB) |
覆盖角度Dispersion(H×V) | / |
灵敏度Sensitivity(1W@1m) | 98dB |
声压级输出SPL | 129dB(continuous),135dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 1200W(rated)/4800W(peak) |
外形尺寸Dimensions(H×W×D) | 780mm×625mm×742mm |
净重Net Weight | 38kg |

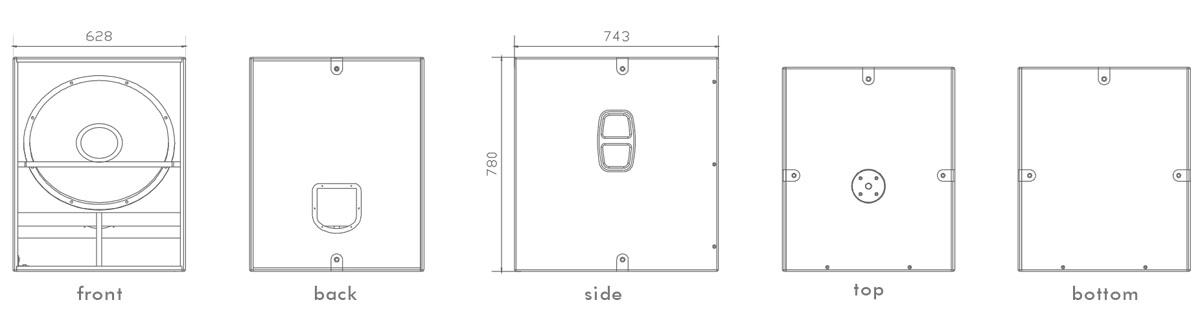

外型尺寸Outline Dimensions

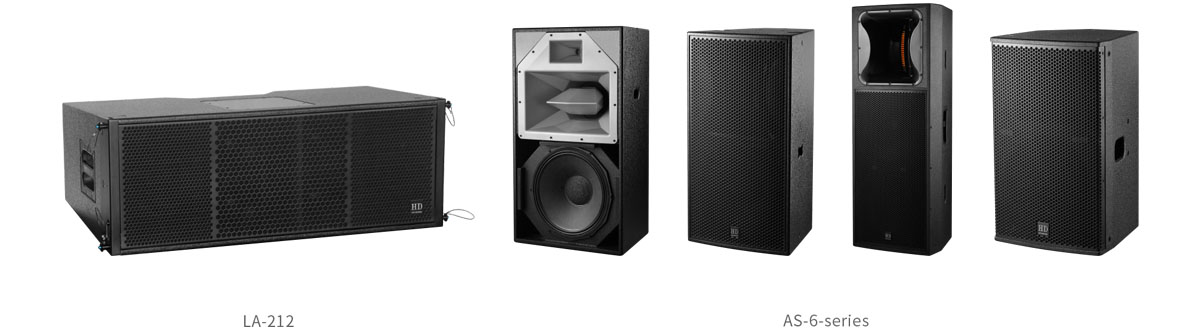

选配产品Matching Products
