技术参数Specifications
型号Model | AS-655 |
单元组成Drivers | LF: 1×15"(380mm)/3"(75mm) voice coil |
HF: 1×1.4"(35mm)/3"(75mm) voice coil | |
频率响应Frequency Response | 45-18000Hz(-3dB) |
覆盖角度Dispersion(H×V) | 60°×40°(可旋转) |
灵敏度Sensitivity(1W@1m) | 99dB |
声压级输出SPL | 126dB(continuous),132dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 600W(rated)/2400W(peak) |
外形尺寸Dimensions(H×W×D) | 840mm×460mm×450mm |
净重Net Weight | 31.2kg |

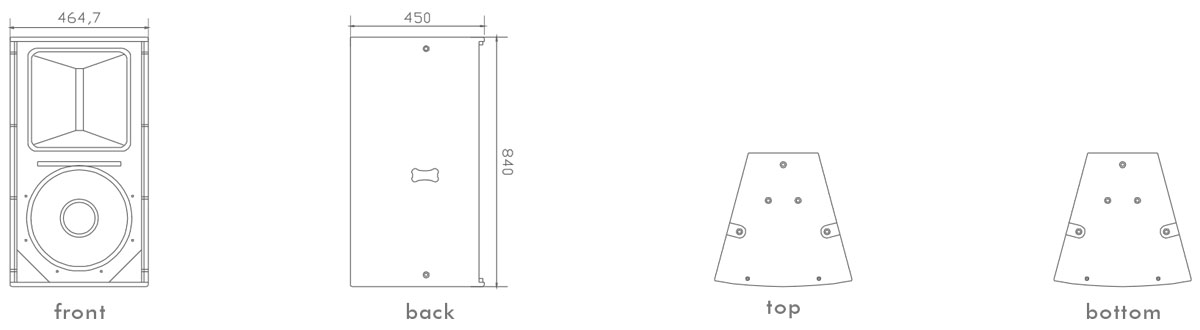

外型尺寸Outline Dimensions

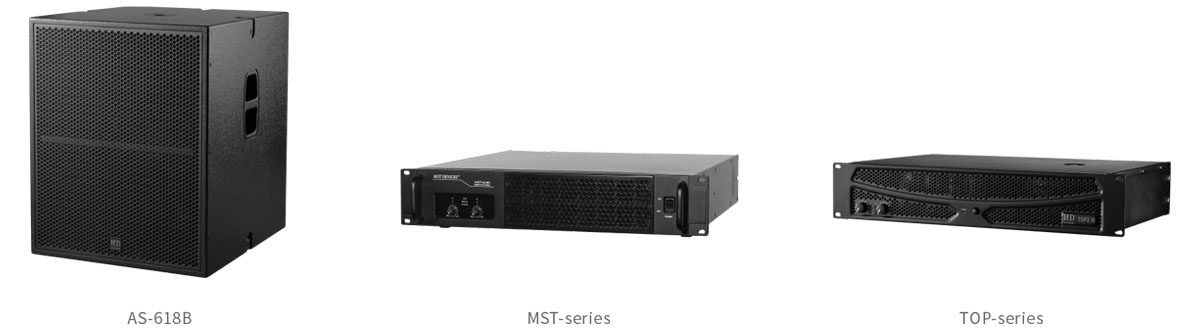

选配产品Matching Products
