技术参数Specifications
型号Model | KT-103 |
单元组成Drivers | LF: 1×10"(255mm)/2.2"(55mm) voice coil |
MF: 2×3"(75mm)/1"(25mm) voice coil | |
HF: 2×3"(75mm)/1"(25mm) voice coil | |
频率响应Frequency Response | 60-20000Hz(-3dB) |
覆盖角度Dispersion(H×V) | 120°×120° |
灵敏度Sensitivity(1W@1m) | 95dB |
声压级输出SPL | 113dB(continuous),119dB(peak) |
标准阻抗Nominal Impedance | 8Ω |
功率Power | 180W(rated)/7200W(peak) |
外形尺寸Dimensions(H×W×D) | 303mm×508mm×320mm |
净重Net Weight | 12.2kg |

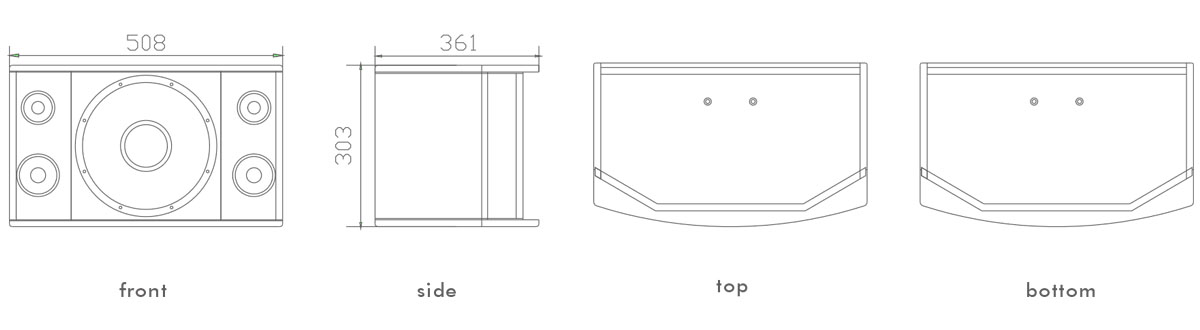

外型尺寸Outline Dimensions

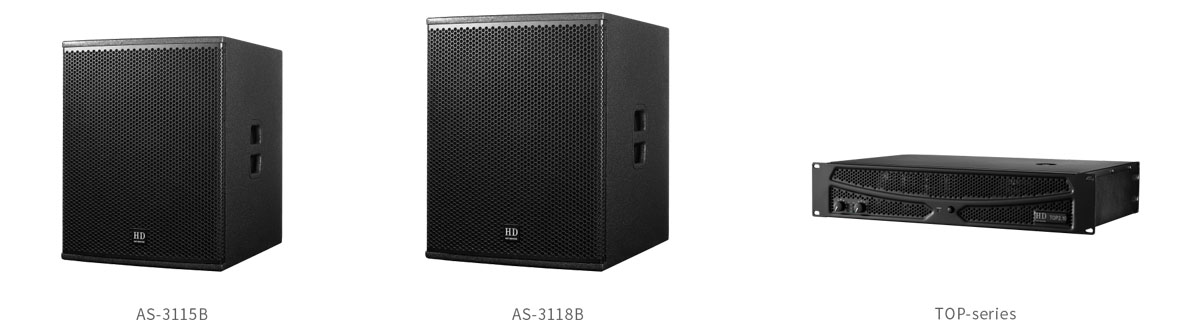

选配产品Matching Products
